ZXQ-1 Touch Screen Automatic Metallographic Specimen Mountin

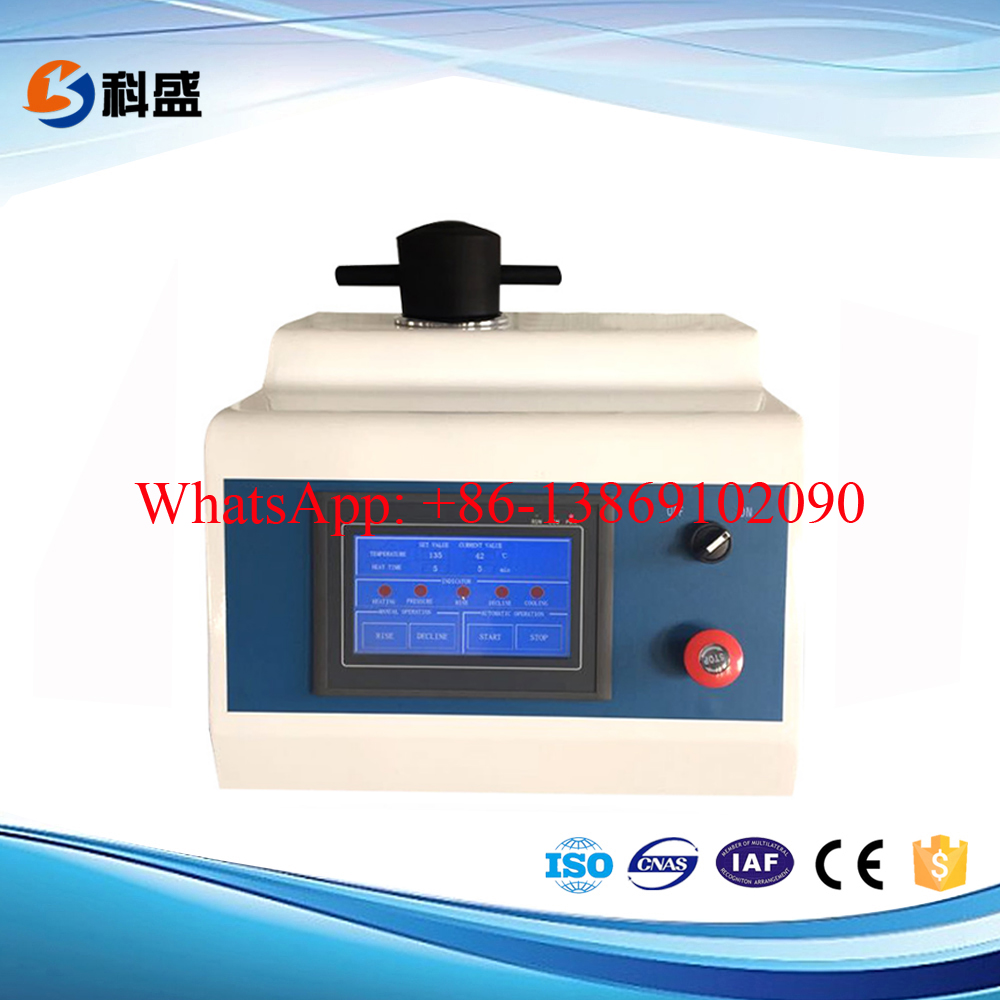

ZXQ-1 Touch Screen Automatic Metallographic Specimen Mounting Press
1.Application:
ZXQ-1 Touch Screen Automatic Metallographic Specimen Mounting Press is used to mosaic small
specimens, specimens in irregular shapes, or specimens which are not easy to take up-the preceding
process before grinding and polishing metallographic or rock specimens.
The mosaic operation serves to facilitate the grinding and polishing operations of the specimens and
the routine observation of the composition of the material under the metallographic microscope.
The machine is heated, and intensified with pressure automatically.
After the formation of the specimen under pressure, it stops the operation and discharges the pressure
also in an automatical way.
With another press of the knob, the machine automatically turns up the specimen, which may be taken away.
Note: It is only for the hot solid materials (such as urea-formaldehyde molding powder and bakelite powder)
with the temperature automatically regulated and controlled.
2.Technical Parameters:
| Model | ZXQ-1 |
| Mould Diameter |
22mm OR 30mm OR 45mm (Please Choose One Sample Diameter) |
| Heater | 650W |
| Transducer | 300W |
| Max. Power Consumption | 1000W |
| Dimension | 380*350*420mm |
| Power Supply | Single Phase, 220V, 50Hz |
| Weight | 50 KG |
