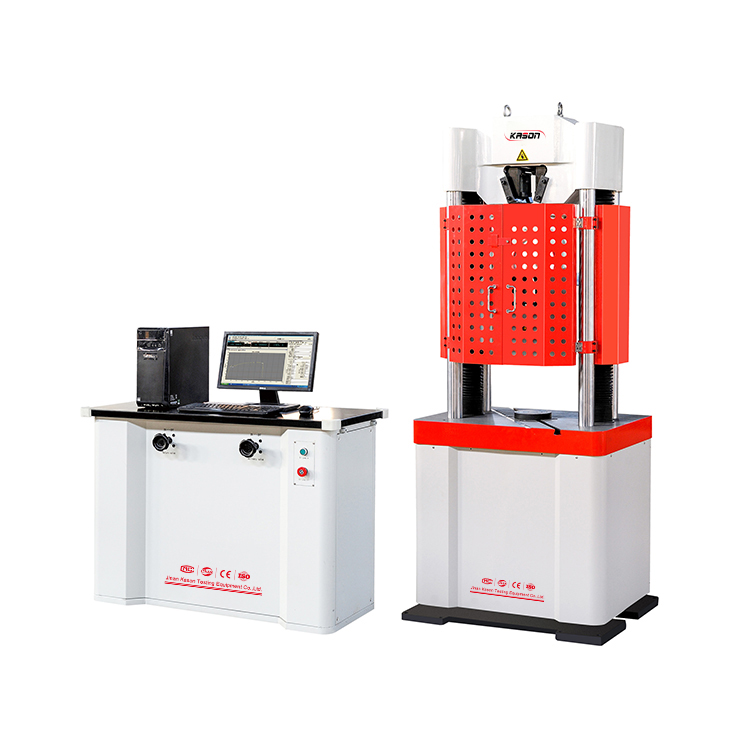

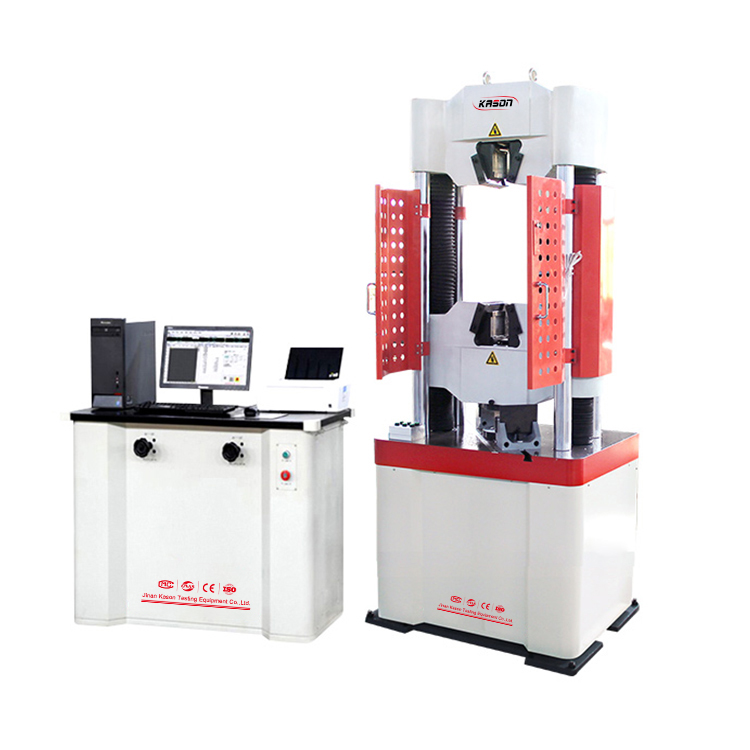

WEW-300D Computer Display Hydraulic Testing Machines
For static and cuasi-static test (low frequency fatigue) for high loads in many types of tests.
Specially indicated to switch test mode, thanks to its dual space design.
The choice of test mode tensile / compressive or tensile bending can be performed without switching devices, increasing the productivity.
2.Standards:
Manufactured according to Standards EN 10002-2; ASTM E4, ISO 7500-1; DIN 51221 and BS1610 guide.
3.Main Specifications:
| Model | WEW-100D | WEW-300D | WEW-600D | WEW-1000D |
| Control Way | Loading Process Manual Control, Computer Automatic Data Dealing | |||
| Number of Screw drivers | 4 | |||
| Max. Load | 100 KN | 300 KN | 600 KN) | 1000 KN |
| Load Accuracy | ≤± 1%/ ≤± 0.5% | |||
| Load Range | 2%~100%FS | |||
| Load Resolution | 1/300000 | |||
| Deformation Measurement Range | 2%~100%FS | |||
| Deformation Accuracy | ≤± 1% | |||
| Displacement Resolution | 0.01mm | |||
| Displacement Error | ≤±0.5% | |||
| Max. Piston Stroke | 200mm | 200mm | 250mm | 250mm |
| Max. Tension Test Space | 650mm (Can Be Customized) | |||
| Max. Compression Test Space | 500mm (Can Be Customized) | |||
| Column Effective Spacing | 430mm | 430mm | 475mm | 525mm |
| Clamping Method | Hydraulic Automatic Clamp | |||
| Flat Specimen Clamping Width | 75mm | 75mm | 80mm | 80mm |
| Compression Plate Size | Φ 160mm | |||
| Bending Roller Distance | 450mm | |||
| Width Of Bending Rollers | 120mm | |||
| Power Supply | 3-phase, AC380V, 50Hz (Can Be Customized) | |||
