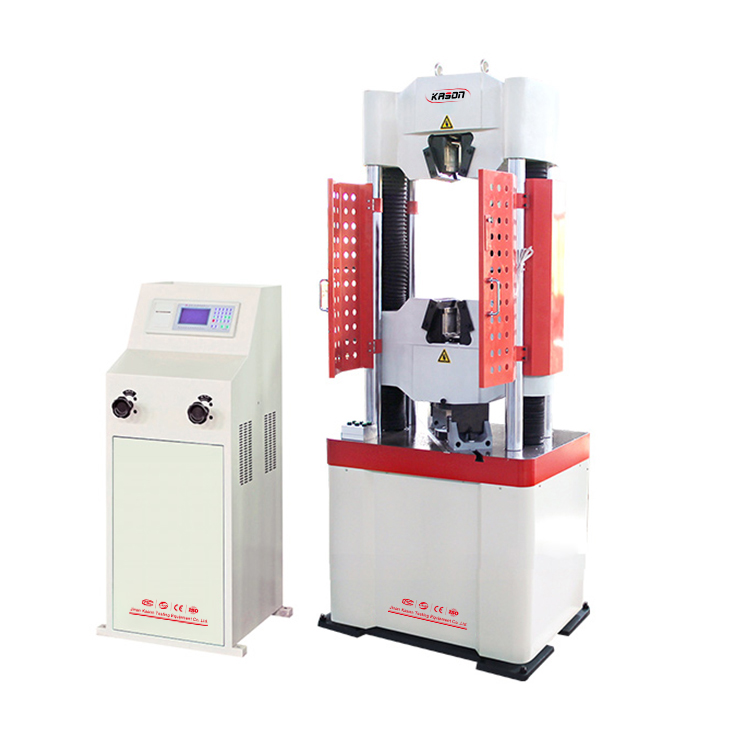

WE-100D Digital Display Hydraulic Universal Testing Machine
The machine adopts hydraulic loading, digital display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.
It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
2.Standards:
ISO, ASTM, DIN, JIS, etc.
3. Host Features:
3.1 WE-D adopts that fuel tank is mounted under the host, tensile test space is located above the host, compression, bending, shearing test space is located under the host, means between beam and worktable.
3.2 The structure is designed with solid four column and two screw, the whole machine has strong stability.
3.3 The host is designed all-inclusively to ensure its super strong stiffness so that it can resist micro-deformation when it is loading.
3.4 Middle beam adopts adjustable gap screw-nut mechanism, eliminating the gap and improving the measurement performance.
3.5 Fuel tank adopts gap sealed, improving the measurement accuracy and also extending service lifetime.
3.6 New design add the Protective Cover and Dust Cover, to protect the operator and the machine.
4.Main Specifications:
| Model | WE-100D | WE-300D | WE-600D | WE-1000D |
| Structure | 6 Column (Four Columns Two Ball Screws) | |||
| Control Way | Loading Process Manual Control | |||
| Max. Load | 100 KN (10 TONS) | 300 KN (30 TONS) | 600 KN (60 TONS) | 1000 KN (100 TONS) |
| Load Accuracy | ≤± 1% | |||
| Load Range |
2%~100%FS (2KN~100KN) |
2%~100%FS (6KN~300KN) |
2%~100%FS (12KN~600KN) |
2%~100%FS (20KN~1000KN) |
| Load Resolution | 0.01 KN | |||
| Piston Speed |
0-140mm/min Manual Adjustment |
0-140mm/min Manual Adjustment |
0-90mm/min Manual Adjustment |
0-50mm/min Manual Adjustment |
| Crossbeam Lifting Speed | 200mm/min | 200mm/min | 150mm/min | 120mm/min |
| Max. Tension Test Space | 650mm (Can Be Customized) | |||
| Max.Compression Test Space | 500mm (Can Be Customized) | |||
| Center Spacing Between Columns | 490mm | 490mm | 540mm | 600mm |
| Column Effective Spacing | 430mm | 430mm | 475mm | 525mm |
| Max. Piston Stroke | 200mm | 250mm | 250mm | 250mm |
| Clamping Method | Manual Clamping / (Optional: Hydraulic Clamping) | |||
| Round Specimen Clamping Range |
Φ10-Φ20mm,Φ20-Φ32mm (Optional: Φ4-Φ10mm) |
Φ10-Φ20mm,Φ20-Φ32mm (Optional: Φ4-Φ10mm) |
Φ13-Φ26mm,Φ26-Φ40mm (Optional: Φ6-Φ13mm, Φ40-Φ50mm) | Φ13-Φ26mm,Φ26-Φ40mm (Optional: Φ6-Φ13mm, Φ40-Φ50mm) |
| Flat Specimen Clamping Range | 0-15mm (Optional: 15-30mm) | |||
| Flat Specimen Clamping Width | 75mm | 75mm | 80mm | 80mm |
| Compression Platen Size | Φ 160mm | |||
| Span Of Bending Rollers | 450mm | |||
| Width Of Bending Rollers | 120mm | |||
| Power Supply | 3-phase,AC380V, 50Hz (Can Be Customized) | |||
