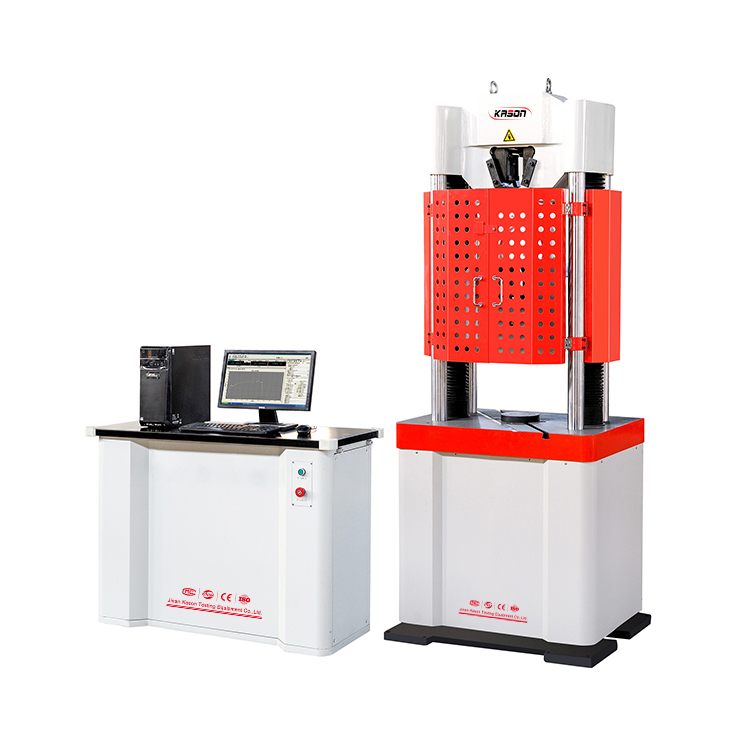

WAW-1000D Computer Control Electro-Hydraulic Servo Universal
For static and cuasi-static test (low frequency fatigue) for high loads in many types of tests.Specially indicated to switch test mode, thanks to its dual space design.The choice of test mode tensile / compressive or tensile bending can be performed without switching devices, increasing the productivity.
2.Standards:
Manufactured according to Standards EN 10002-2; ASTM E4, ISO 7500-1; DIN 51221 and BS1610 guide.
3.Main Specifications:
| Model | WAW-100D | WAW-300D | WAW-600D | WAW-1000D |
| Control Way | Constant stress uniform deformation constant displacement three closed loop control and program control dealing | |||
| Number of Screw drivers | 4 | |||
| Max. Load | 100 KN | 300 KN | 600 KN) | 1000 KN |
| Load Accuracy | ≤± 1%/ ≤± 0.5% | |||
| Load Range | 2%~100%FS | |||
| Load Resolution | 1/300000 | |||
| Deformation Measurement Range | 2%~100%FS | |||
| Deformation Accuracy | ≤± 1% | |||
| Displacement Resolution | 0.01mm | |||
| Displacement Error | ≤±0.5% | |||
| Max. Piston Stroke | 200mm | 200mm | 250mm | 250mm |
| Max. Tension Test Space | 650mm (Can Be Customized) | |||
| Max. Compression Test Space | 500mm (Can Be Customized) | |||
| Column Effective Spacing | 430mm | 430mm | 475mm | 525mm |
| Clamping Method | Hydraulic Automatic Clamp | |||
| Flat Specimen Clamping Width | 75mm | 75mm | 80mm | 80mm |
| Compression Plate Size | Φ 160mm | |||
| Bending Roller Distance | 450mm | |||
| Width Of Bending Rollers | 120mm | |||
| Power Supply | 3-phase, AC380V, 50Hz (Can Be Customized) | |||
